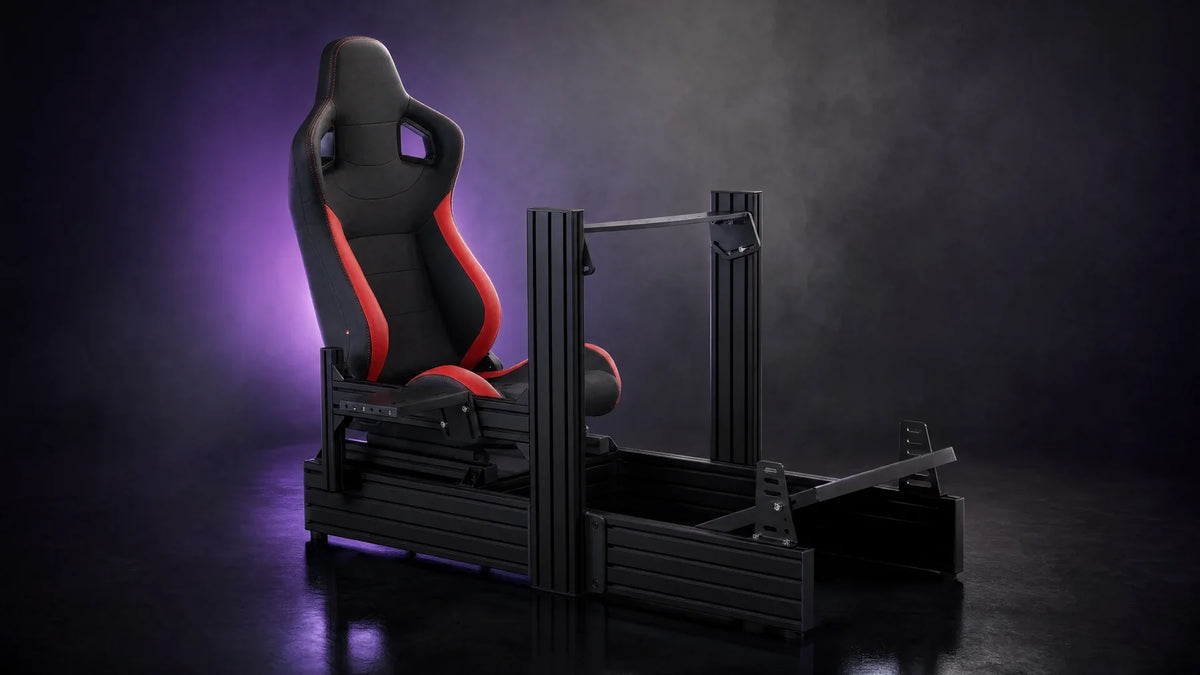

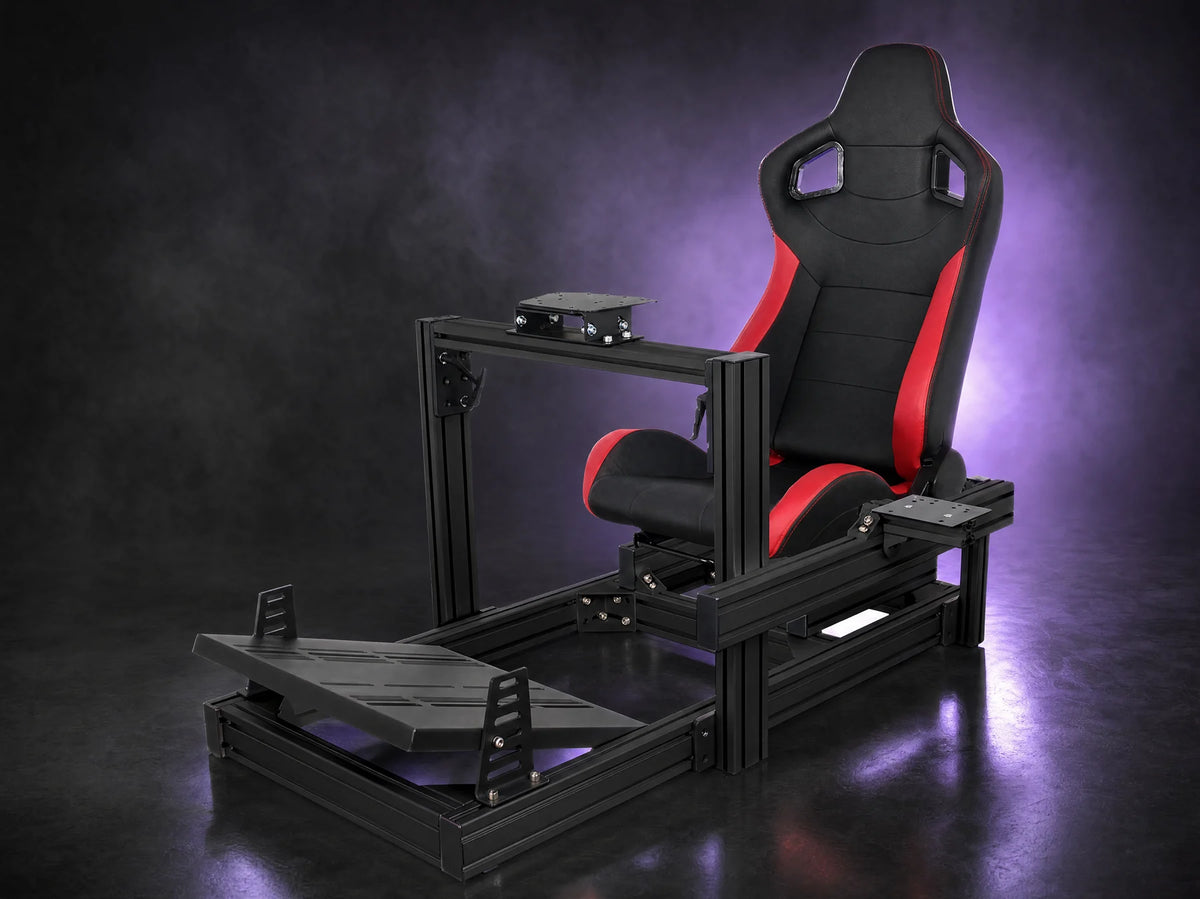

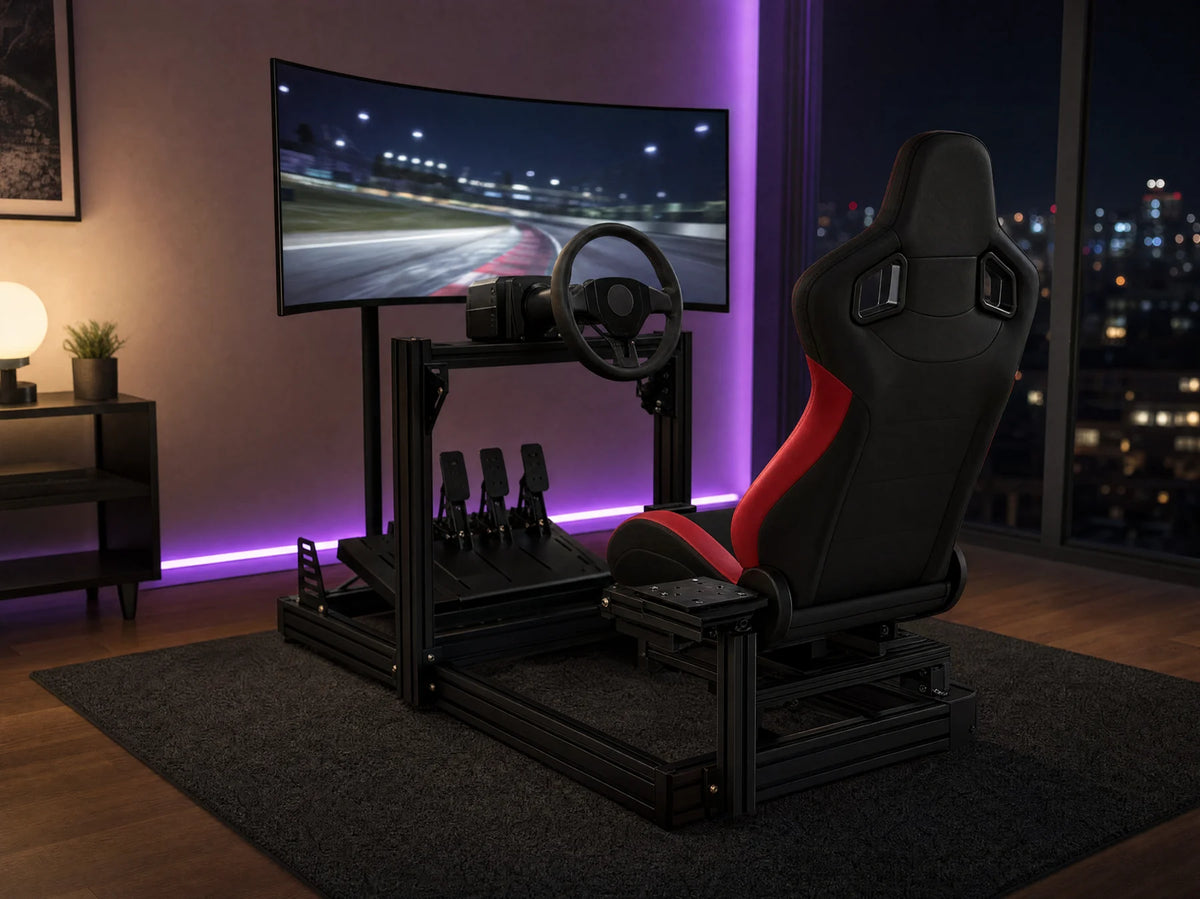

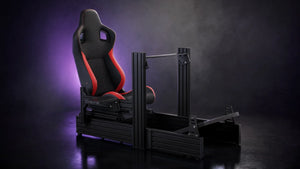

GT-80 cockpit with black and red bucket seatFront view with wheel deck and pedal plateWheel deck plate and clampsSeat sliders on the 40 x 80 profileSet up at home with a wheelbase and curved monitorProfile detail01 · GT-80 COCKPIT WITH BLACK AND RED BUCKET SEAT
Why it holds

Built where
the wheel pulls

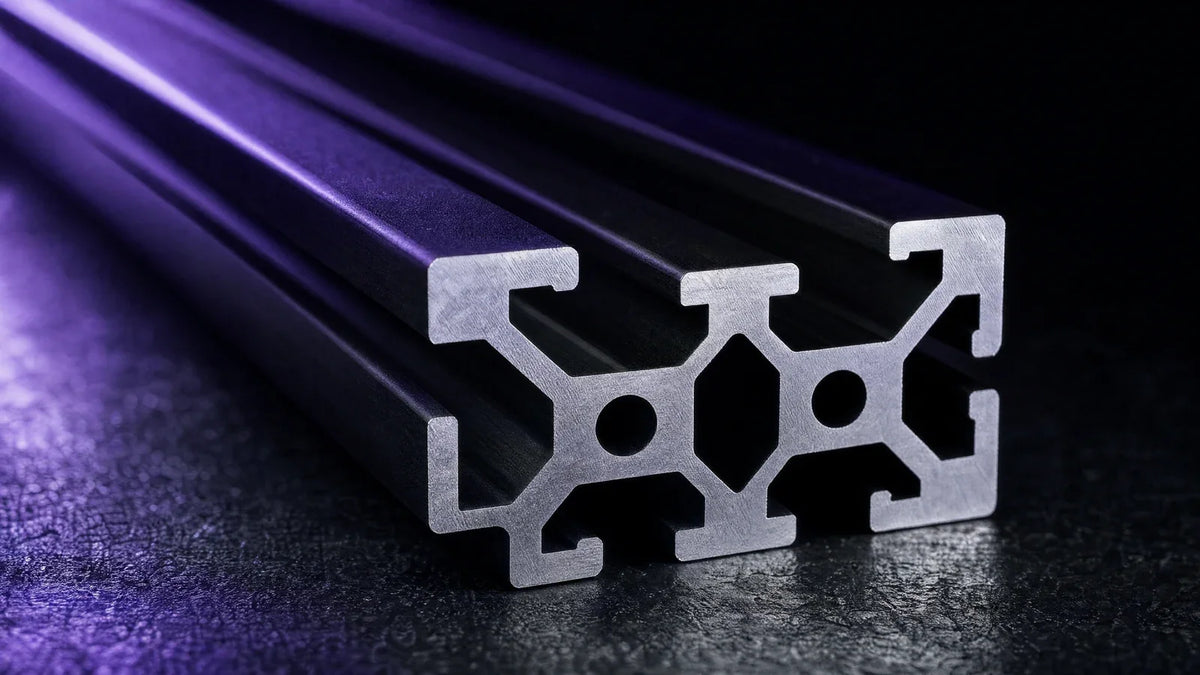

Profile detail
01 · PROFILE

40 × 80 aluminum

Twice the section of a 40 × 40 entry rig, with an 8 mm slot on every face. Anything can move along it, nothing bends under load.

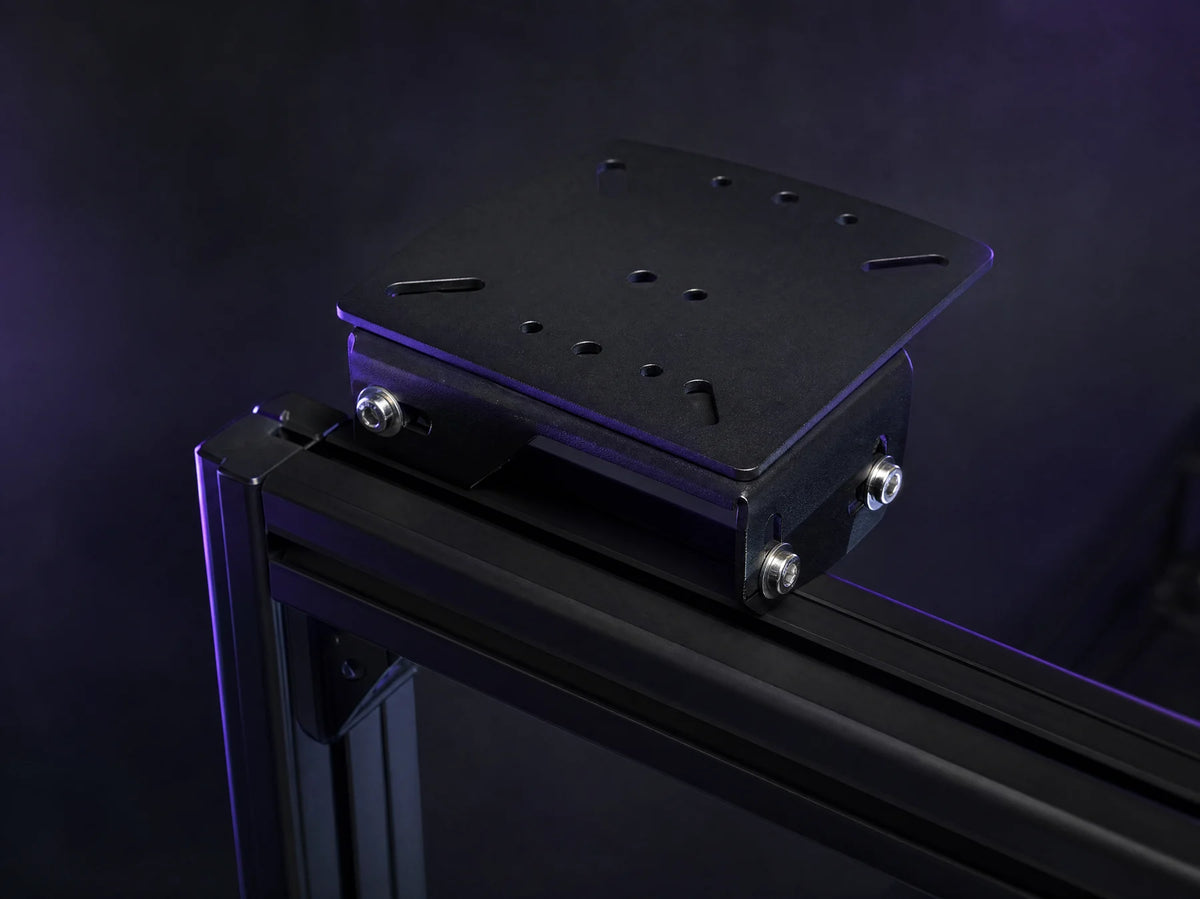

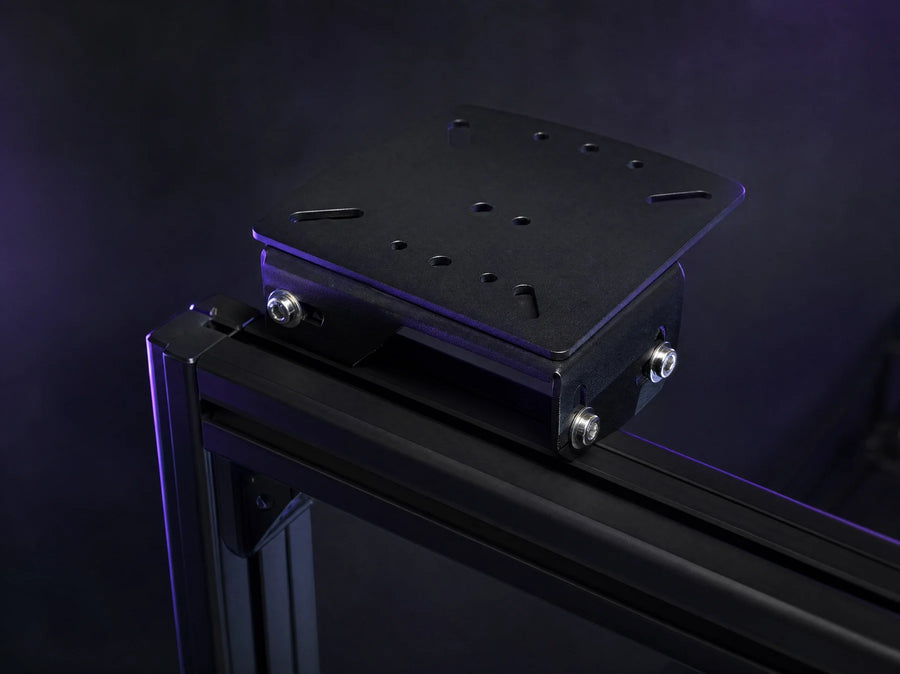

Wheel deck plate and clamps
02 · WHEEL DECK

Bolt on, no drilling

Bottom-mount bases bolt straight on. Simagic and Simucube bases mount from the front, on a plate drilled for their Ø130 to 145 mm M8 circle.

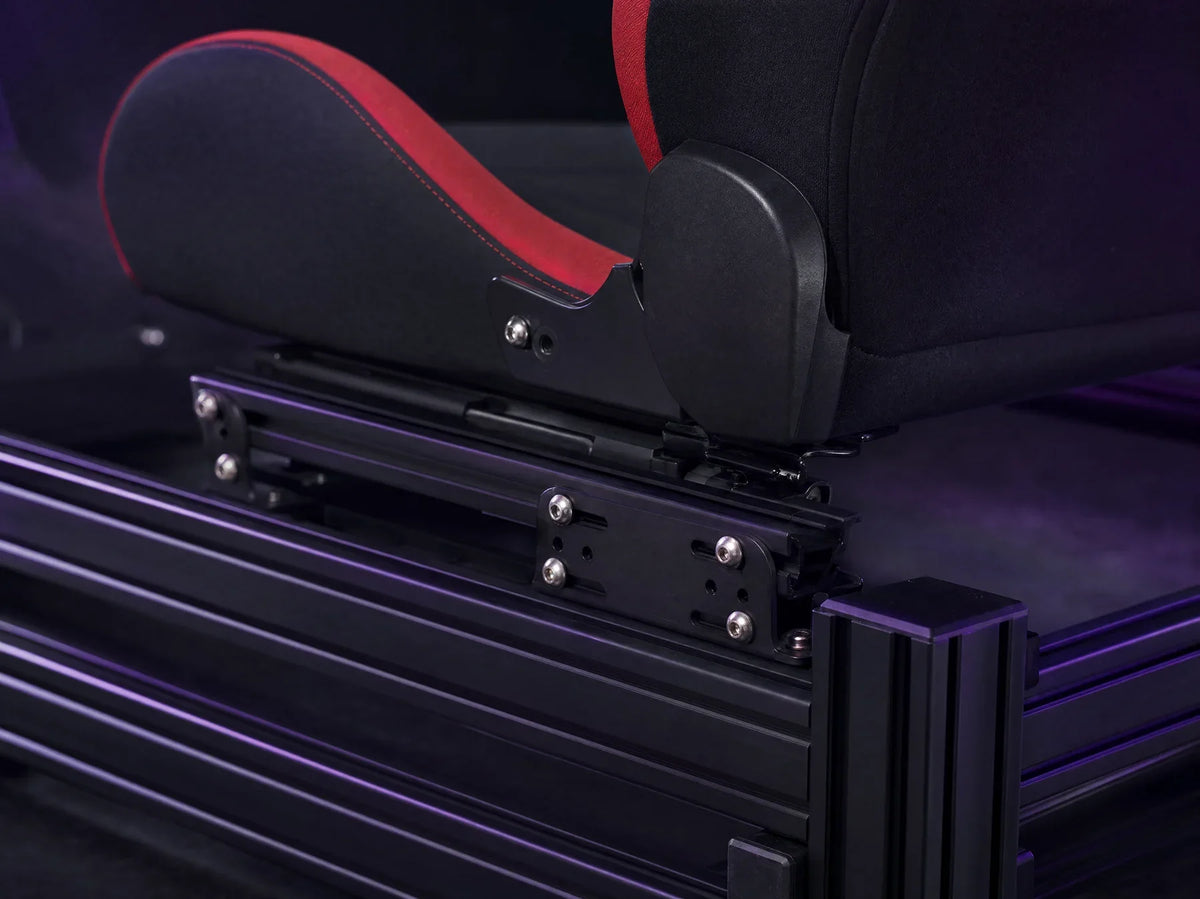

Seat sliders on the 40 x 80 profile
03 · SEAT

Your seat, or ours

Standard 290 and 320 mm brackets on sliders. Most bucket seats bolt on as they are.

Spec sheet

Every number,
on paper

PROFILE40 × 80 mm, aluminum 6063-T5, black anodized
SLOT8 mm, M6 and M8 T-nuts
WHEELBASEDirect drive up to 20 Nm
WHEEL DECKBottom mount 78.4 × 66 mm M6, T-slot rails · front-mount bases: plate drilled Ø130, 135, 145 mm M8
PEDAL DECKSlotted for M6 and M8, angle and reach adjustable
SEATSide brackets 290 / 320 mm, M8, on sliders
POSITIONGT. For a Formula position, choose the F-160
DISCIPLINESRacing, rally, flight
IN THE BOX
  • Base frame and uprightsBox 1
  • Wheel deck, pedal deck, shifter plateBox 2
  • Seat brackets and slidersBox 2
  • Assembly hardwareBox 2
  • Bucket seat (if chosen)Box 3
Goes with

Complete
the rig

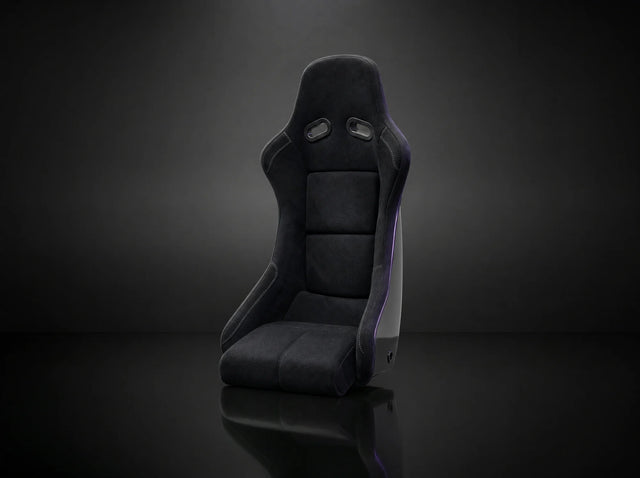

FB-3 fiberglass bucket seat in black suede
FB-3 Fiberglass Bucket Seat, 3 SizesFIBERGLASS BUCKET · SUEDE$449

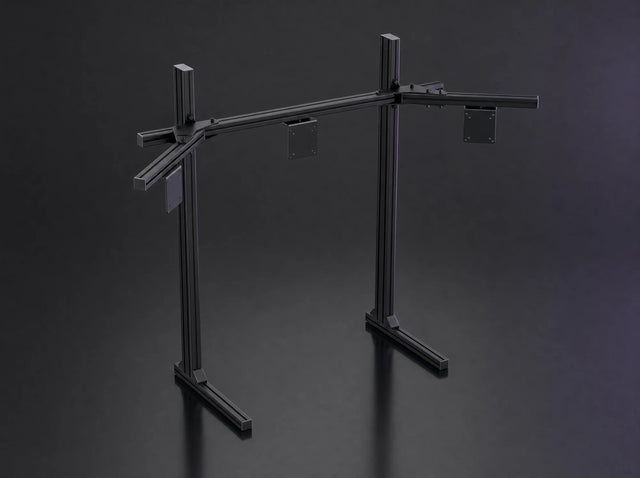

TS-80 freestanding triple monitor stand in black aluminum profile
TS-80 Triple Monitor StandTRIPLE MONITOR STAND · 40 × 80 PROFILE$329
SP-1 black shifter plate with mounting slots
SP-1 Shifter PlateSHIFTER PLATE · 4 MM STEEL$49
GT-80 Race Pack: GT-80 Aluminum Sim Racing Cockpit, 4080 Profile, Direct Drive Ready, FB-3 Fiberglass Bucket Seat, 3 Sizes, TS-80 Triple Monitor Stand
GT-80 Race PackGT-80 + FB-3 BUCKET + TS-80 TRIPLE STAND$1,477
Before you order

Questions

Will my wheelbase fit without drilling?

MOZA, Fanatec and Logitech bases bolt to the wheel deck from below. Simagic Alpha and Simucube bases mount from the front: they bolt to a front-mount plate drilled for their Ø130 to 145 mm M8 circle.

GT-80 or GT-120?

Up to 20 Nm, the GT-80 holds. Above that, or if you plan to upgrade to a 21 or 25 Nm base, go straight to the GT-120.

Can I use it for flight sims?

Yes. HOTAS, yoke and rudder pedals bolt to the T-slot profile like every other part, and our triple screen stands work for flight too.

How is it delivered?

In 2 to 3 boxes, parts grouped by assembly step, with a printed and online assembly guide.
