Steel tube cockpits are cheap and strong. Aluminum profile cockpits cost more. So why do most serious sim racers end up on aluminum profile? The answer is in where a cockpit flexes, and why.
Flex is about shape before material
Steel is about three times stiffer than aluminum as a material (an elastic modulus of roughly 200 GPa against 69 GPa). But how much a beam bends depends far more on its shape than on its material. For a beam loaded across its height, stiffness grows with the cube of that height: double the height and, for the same wall design, the beam becomes roughly eight times stiffer.

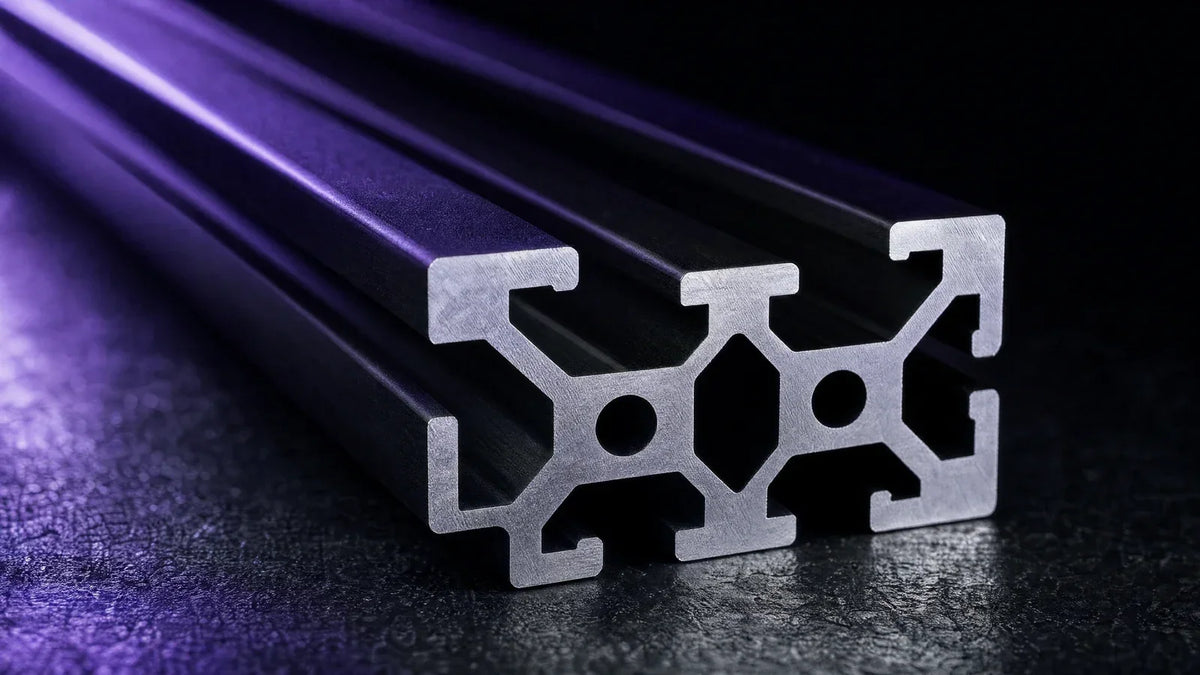

That is why a 40 × 80 mm aluminum profile, set on its tall side where the wheel pulls, can out-stiff a thinner steel tube, and why cockpit makers step up from 40 × 80 to 40 × 120 and 40 × 160 as wheelbase torque rises.
Where tube cockpits flex
On tube rigs, the weak points are usually the wheel deck arms and the joints. A direct drive base applies a twisting load on a long lever. If the deck hangs on two thin arms clamped to a tube, the arms twist and the clamps rotate, even if the tube itself is strong.
Why aluminum profile wins on a sim rig
- Section where it matters. The profile height can be chosen for the load, from 40 × 80 to 40 × 160.
- Adjustment everywhere. An 8 mm slot runs along every face: the wheel deck, pedal plate, seat and shifter slide to the exact position with a hex key.
- Upgradeable. Add a monitor arm, a handbrake, HOTAS mounts or a longer rail later. Nothing is welded.
- No rust, lighter to move. Anodized aluminum needs no care and moves room to room in parts.
When steel tube still makes sense
Below about 10 Nm, with a gear or belt wheel, a well-built tube or folding rig is enough and costs less. Above that, look at aluminum profile sized for your torque: see the torque guide.
