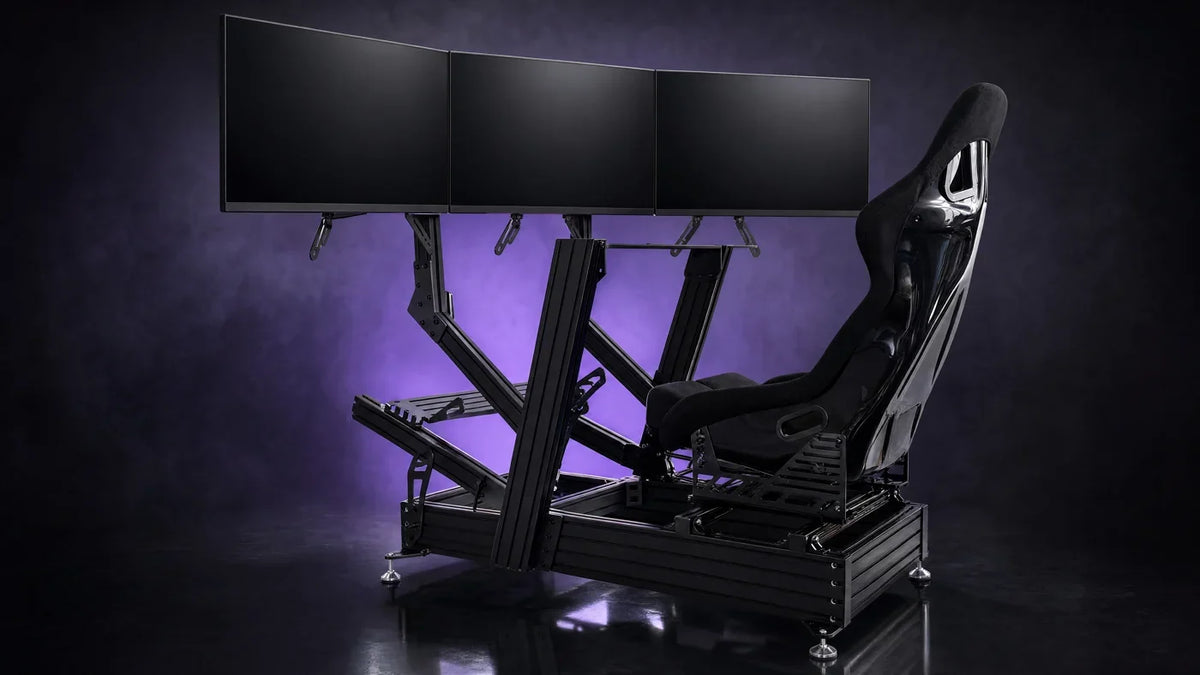

01 · F-160 COCKPIT WITH THREE MONITORS ON ITS BUILT-IN ARMS
Why it holdsBuilt where
Built where
the wheel pulls
The heaviest section we make
40 × 160 mm on the main members. That is what keeps a 25 to 35 Nm base from twisting the deck.
Arms in the frame

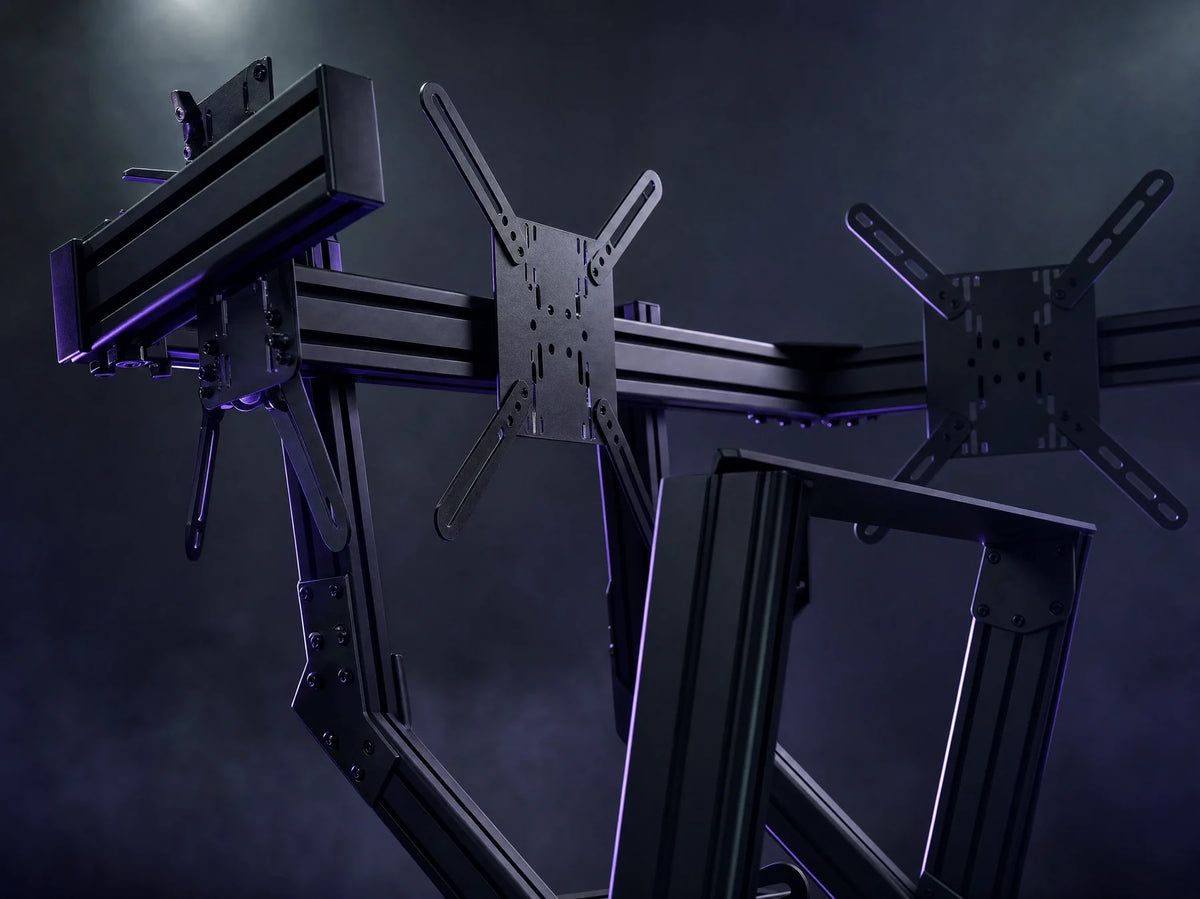

Three VESA arms on the top bar. The screens stay aligned with your eyes because they sit on the same chassis.

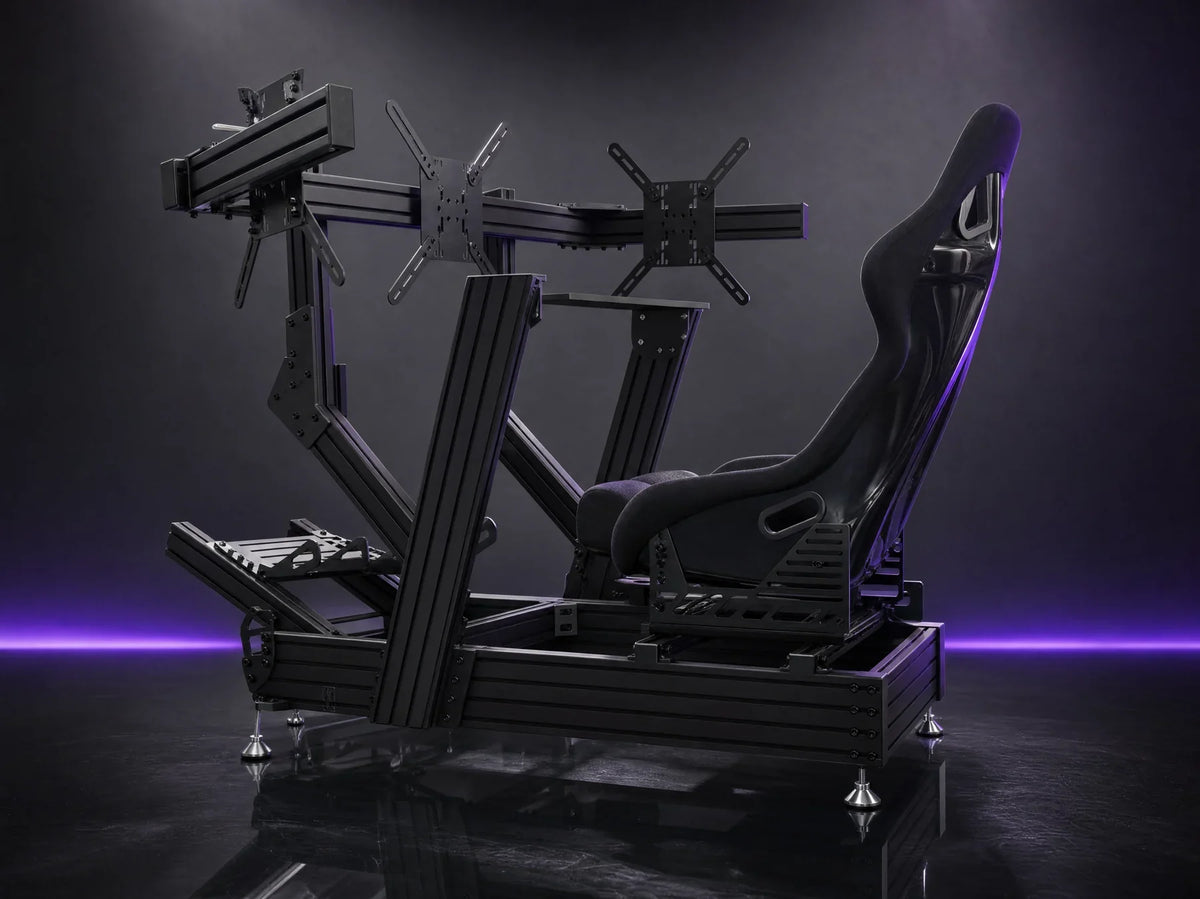

Set low, set long
A long base for a reclined position and pedals high, the way open-wheel cars are driven.
Spec sheetEvery number,
Every number,
on paper

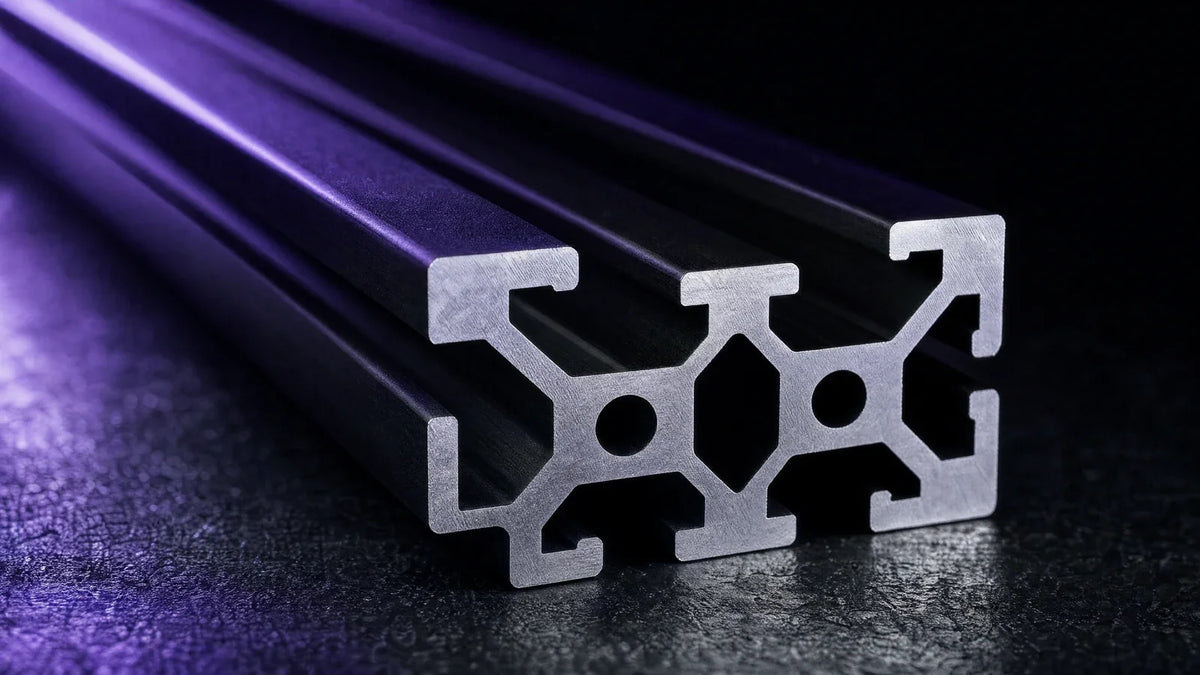

PROFILE40 × 160 mm main members, aluminum 6063-T5, black anodized
SLOT8 mm, M6 and M8 T-nuts
WHEELBASEDirect drive 30 Nm and up (35 Nm bases)

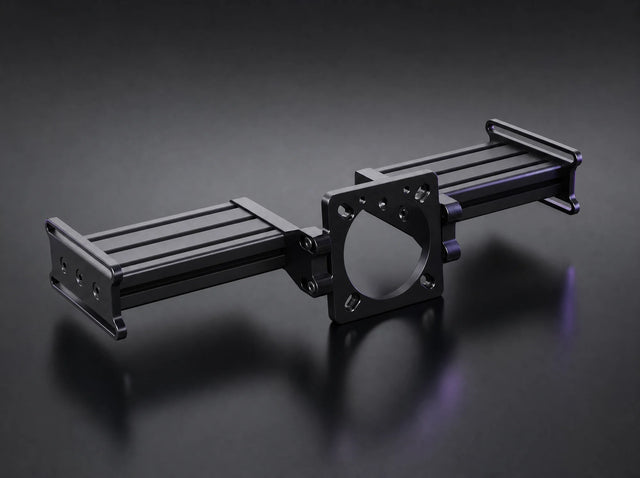

WHEEL DECKBottom mount 78.4 × 66 mm M6 · front-mount bases: plate drilled Ø130, 135, 145 mm M8
MONITORS3 VESA arms on the top bar · VESA 75 / 100, screens 28 to 42 inch
PEDAL DECKSlotted, M6 and M8
SEATSide brackets 290 / 320 mm, M8
POSITIONFormula and GT
IN THE BOX
- Base frameBox 1
- Uprights and top barBox 2
- VESA monitor armsBox 2
- Wheel deck, pedal deck, hardwareBox 3

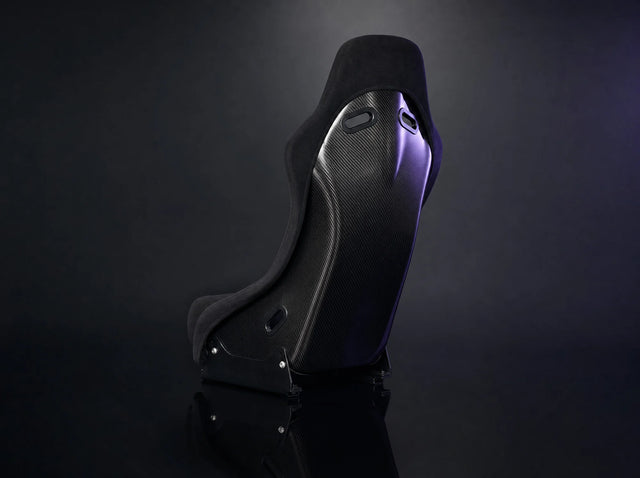

- Bucket seat (if chosen)Box 4
Before you order
Questions
Do I need the F-160 for a 25 Nm base?
A 25 Nm base is the limit of the GT-120. If you plan to go to 28 or 35 Nm, or want the triple screens on the chassis, take the F-160.
Which monitors fit the arms?
Standard VESA 75 / 100 monitors, from 28 to 42 inch.
Can I use a free-standing screen stand instead?
Yes. With a motion platform it is even required, so the screens stay still while you move.
How is it delivered?
In 3 to 4 boxes, parts grouped by assembly step, with a printed and online assembly guide.
